Coordinate Measuring Machine (CMM): Advancing Quality Assurance in CNC Machining Services

Coordinate Measuring Machine (CMM): Advancing Quality Assurance in CNC Machining Services.

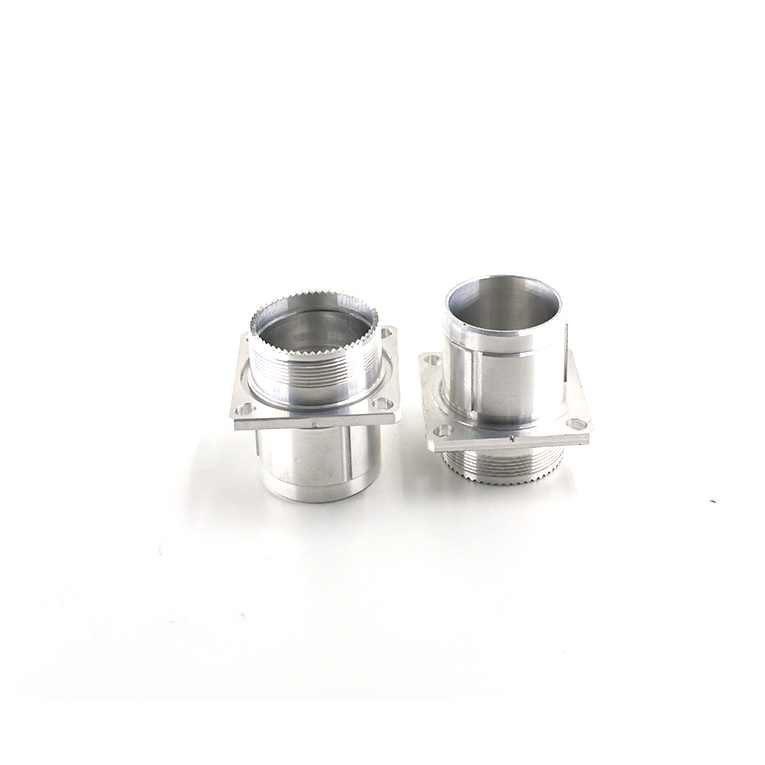

In the CNC machining service industry, ensuring the accuracy and precision of machined parts is paramount. To meet these stringent quality standards, manufacturers employ advanced inspection and measurement equipment. One such crucial tool is the Coordinate Measuring Machine (CMM). In this article, we explore the role of CMMs in the CNC machining service industry, their features, and how they contribute to the quality assurance process.

1. Overview of Coordinate Measuring Machines (CMMs): A Coordinate Measuring Machine is a sophisticated metrology instrument designed to measure the dimensions and geometric characteristics of complex parts. It uses a combination of precision mechanical systems, high-accuracy sensors, and specialized software to capture data points and create a detailed digital representation of the part being measured.

2. Operating Principles: CMMs operate on the principle of Cartesian coordinate systems. They have three orthogonal axes (X, Y, and Z) that define the position of the measuring probe or stylus. The machine moves the probe along these axes, and the measurement data is recorded at specific points. The CMM's software then analyzes this data to generate accurate measurements and detailed reports.

3. Structural Components: A typical CMM consists of three main components: the machine structure, the measuring probe system, and the control software. The machine structure comprises a stable granite or aluminum base, a bridge or gantry structure that supports the probe, and precision linear guides for smooth movement. The measuring probe system includes the probe itself, which can be a touch-trigger probe or a scanning probe, and additional sensors such as optical or laser scanners. The control software integrates with the CMM hardware, allowing users to define measurement routines, collect data, and analyze results.

4. Touch-Trigger and Scanning Probes: CMMs can be equipped with touch-trigger probes or scanning probes. Touch-trigger probes make contact with the part at specific measurement points, registering the coordinates when the stylus tip deflects. Scanning probes, on the other hand, continuously capture data points along the surface of the part, allowing for more comprehensive measurements and the generation of 3D surface profiles. Scanning probes are particularly useful for capturing complex geometries and performing reverse engineering tasks.

5. Measurement Capabilities: CMMs are capable of measuring various geometric characteristics, including dimensions, form, position, orientation, and surface finish. They can measure features such as holes, slots, bores, angles, flatness, roundness, and concentricity. With the integration of additional sensors and advanced software, CMMs can also perform tasks like non-contact measurement, 3D scanning, and feature extraction from point clouds.

6. Software and Data Analysis: CMMs rely on powerful software packages for data acquisition, analysis, and reporting. These software suites provide a user-friendly interface to program measurement routines, specify tolerances, and generate detailed inspection reports. They often include CAD integration features, allowing direct comparison of measured data with the original design. Advanced algorithms enable geometric dimensioning and tolerancing (GD&T) analysis, statistical process control (SPC), and trend analysis, enhancing the overall quality assurance process.

7. Advantages of CMMs in CNC Machining: CMMs play a vital role in ensuring the quality of machined parts in the CNC machining service industry. They offer several advantages, including:

Precision and Accuracy: CMMs provide highly accurate measurements, often with submicron-level precision, ensuring that parts meet the specified tolerances.

Efficiency: CMMs can automate the measurement process, reducing the time.
